Product Data Sheet

Lexan® Thermonclear® Sheet LTC10/2RS1700

Description
LTC10/2RS1700 is a member of the Lexan® Thermoclear® sheet range of high quality, multi-wall polycarbonate glazing sheets extruded Lexan® resin.

UV Resistance
The complete Lexan Thermoclear sheet range features a propriety one-side surface treatment designed to protect the sheet against degrading effects of ultra-violet radiation in natural sunlight. This side must always be installed facing outwards.

Lexan Thermoclear Dripgard Sheet
Lexan Thermoclear Dripgard sheet features an additional proprietary surface treatment, on the inward facing side, to inhibit the formation of condensation water droplets. This property is particularly important in helping to prevent plant spoilage in greenhouse. Lexan Thermoclear Dripgard can be ordered using the following code LTD10/2RS1700.

Warranty
GE Plastics offers a Ten Year Limited Warranty on Lexan Thermoclear sheet covering discoloration, loss of light transmission and loss of strength due to weathering. See warranty for exact details. Non-Standard Specifications All GE Plastics multi-wall sheet products can be supplied by prior arrangement in non-standard widths, lengths and colours. Such arrangements may affect prices, warranty terms and/or other conditions of sale.

Installation
Installation Design Parameters shown here are typical values measured and calculated according to Building and Construction Research Report no. B-90-480, the Netherlands Organisation for Applied Science Research (TNO). For more advice and information on installation, contact your nearest GE Plastics Structured Products Sales Office or Approved Lexan Thermoclear Sheet Distributor.

Availability (LTC10/2RS1700)

Width	Length	Standard Colours
1250mm	6000 and 7000mm	Clear 112 Opal White 82995 Solar Bronze (on request)
2100mm



Typical Propertie

Property	Test Method	Unit	Value
Physical
Weight	-	g/m²	1700
Sound insulation	DIN 52210	dB	19
Optical
Light Transmission	ASTM D 1003
Clear 112		%	81
Opal White (82995)		%	48
Solar Bronze (515055)		%	35
Solar Transmission	DIN 67507
Clear (112)		%	85
Opal White (82995)		%	71
Solar Bronze (515055)		%	55
Mechanical
Hail Impact Resistance	TNO Test*	m/s	>21
(hail simulation test 20mm Plastics bullet)
Stiffness	TNO Test*
Bending		N.mm²/mm	64939
Shear		N/mm	2.2389
Typical values only Light transmission values may vary by plus or minus 3%
Thermal
U (or K) Value	DIN 2612	W/m².K	3.0
Coefficient of linear thermal expansion	VDE 0304/1	m/m.°C	7x10 to the -5
Recommended Maximum Continuous Use Temperature	UL746B	°C	100

Fire Test Performance
Lexan® Thermoclear® has good fire performance against many national fire codes dependent on thickness and colour; please check with the local sales office for details

LTC 10/2RS1700: Installation Design Parameters

1.Flat installations a. Two sides clamped, parallel with ribs
Sheet Width W (mm)		815	730	670	620	585	545	520
Loading* (N/m2)		600	800	1000	1200	1400	1600	1800	>=2000
b. Two sides clamped, perpendicular to ribs
Purlin distance W (mm)		1010	930	875	830	790	760	730	710
Loading* (N/m2)		600	800	1000	1200	1400	1600	1800	>2000
c. Four sides clamped
W/L ratio	Loading* (N/m²)	600	800	1000	1200	1400	1600	1800	>=2000
1:1	Sheet width	1500	1375	1280	1215	1160	1110	1070
1:1.5		1150	1070	960	920	850	800	760
1:>1.5	W in mm	815	730	670	620	585	545	520

Safety factor of 1.5 against calculated 'pop-out'

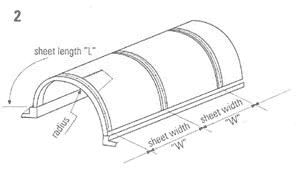

2. Curved Installations, Four sides clamped
Radius (mm)	Loading* (N/m²)	600	800	1000	1200	1400	1600	1800	>=2000
1750	Sheet width	2100	1930	1530	1320	1140	1000	900	800
1900		2100	1680	1380	1160	1020	880	800	720
2000	W in mm	2000	1600	1280	1080	930	830	750	680
2100		1900	1470	1200	1010	870	770	700
2200		1820	1390	1120	950	820	730
2300		1700	1300	1060	890	780
2400		1600	1230	1000	840	740
2500		1530	1150	950	800
2600		1450	1070	900
2700		1380	980	860
2800		1280	930
3000		1160	880
3200		1080	830
3400		1000

Notes:
(a) Width/length ratio (W/L) is > 1:2
(b) 2800 mm is a minimum allowable radius
** Safety factor of 2.0 against calculated 'buckling'
+ These design parameters are published in good faith with the agreement of TNO; publication does not imply that GE Plastics accepts any liability for their accuracy and/or applicability.
